Non Asbestos Gasket Sheets
Non-Metallic
(General Purpose - Jointing Sheet)
Max. Peak Temperature: 275°C
Max. Operating Temperature: 200°C
Max. Pressure: 60 bar
Max. Temp. with Steam: 120°C
(Oil Grade - Jointing Sheet)
Max. Peak Temperature: 350°C
Max. Operating Temperature: 250°C
Max. Pressure: 100 bar
Max. Temp. with Steam: 180°C
(Premium Oil Grade - Jointing Sheet)
Max. Peak Temperature: 425°C
Max. Operating Temperature: 275°C
Max. Pressure: 120 bar
Max. Temp. with Steam: 220°C
(High Performance - Jointing Sheet)
Max. Peak Temperature: 425°C
Max. Operating Temperature: 300°C
Max. Pressure: 150 bar
Max. Temp. with Steam: 250°C
(Glass Fibre Grade - Jointing Sheet)
Max. Peak Temperature: 475°C
Max. Operating Temperature: 375°C
Max. Pressure: 150 bar
Max. Temp. with Steam: 280°C
(Acid Grade - Jointing Sheet)
Max. Peak Temperature: 400°C
Max. Operating Temperature: 275°C
Max. Pressure: 150 bar
Max. Temp. with Steam: 240°C

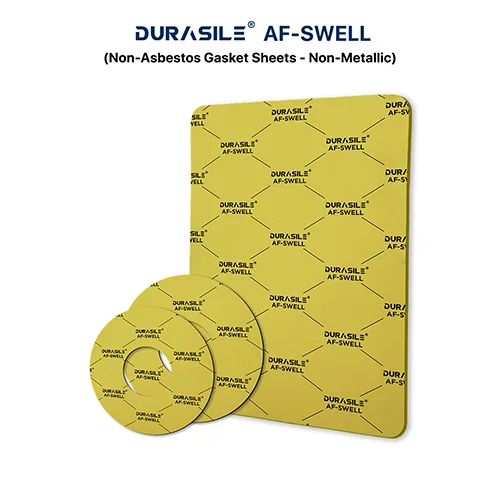

(Controlled Swell Grade - Jointing Sheet)
Max. Peak Temperature: 400°C
Max. Operating Temperature: 275°C
Max. Pressure: 150 bar
Max. Temp. with Steam: 250°C
(Carbon Fibre Grade - Jointing Sheet)
Max. Peak Temperature: 425°C
Max. Operating Temperature: 325°C
Max. Pressure: 150 bar
Max. Temp. with Steam: 280°C
Metallic
(Gen. Purpose Metallic Grade - Jointing Sheet)
Max. Peak Temperature: 300°C
Max. Operating Temperature: 225°C
Max. Pressure: 70 bar
Max. Temp. with Steam: 120°C
(Premium Oil Metallic Grade - Jointing Sheet)
Max. Peak Temperature: 500°C
Max. Operating Temperature: 275°C
Max. Pressure: 140 bar
Max. Temp. with Steam: 220°C

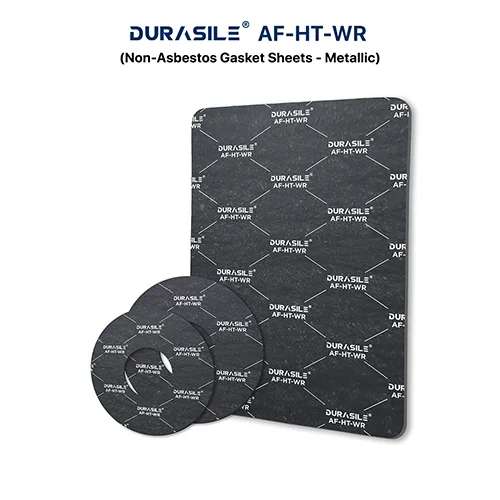

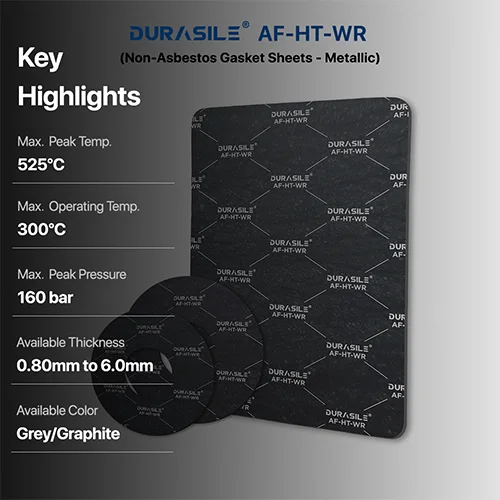

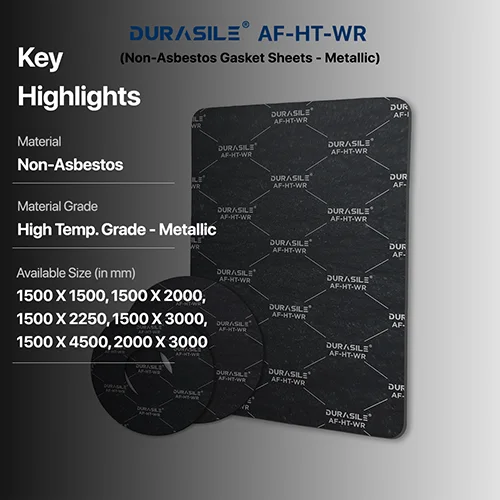

(High Performance Metallic Grade - Jointing Sheet)
Max. Peak Temperature: 525°C
Max. Operating Temperature: 300°C
Max. Pressure: 160 bar
Max. Temp. with Steam: 240°C
(Glass Fibre Metallic Grade - Jointing Sheet)
Max. Peak Temperature: 550°C
Max. Operating Temperature: 400°C
Max. Pressure: 170 bar
Max. Temp. with Steam: 280°C
(Metallic Oil Grade - Jointing Sheet)
Max. Peak Temperature: 375°C
Max. Operating Temperature: 275°C
Max. Pressure: 120 bar
Max. Temp. with Steam: 180°C
